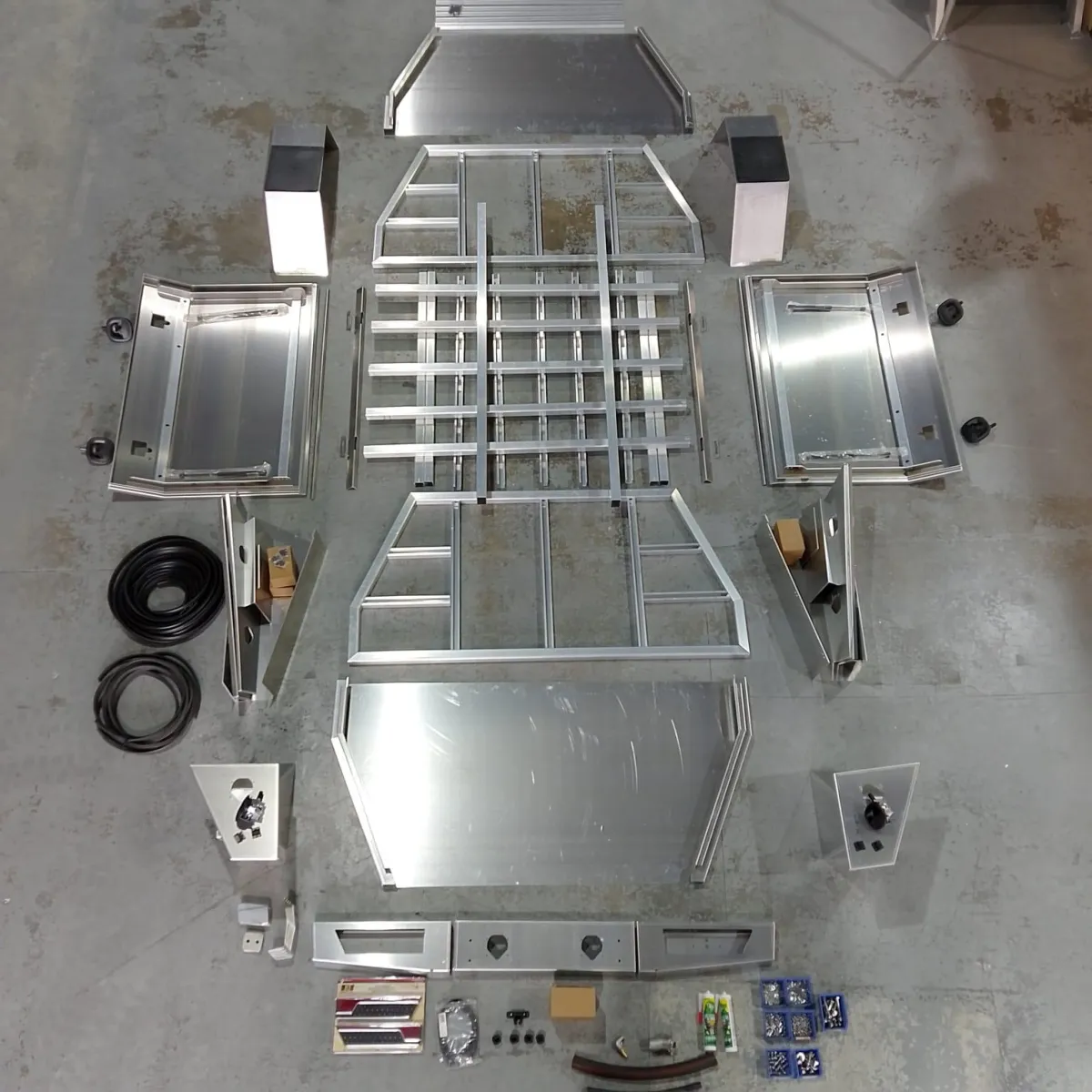

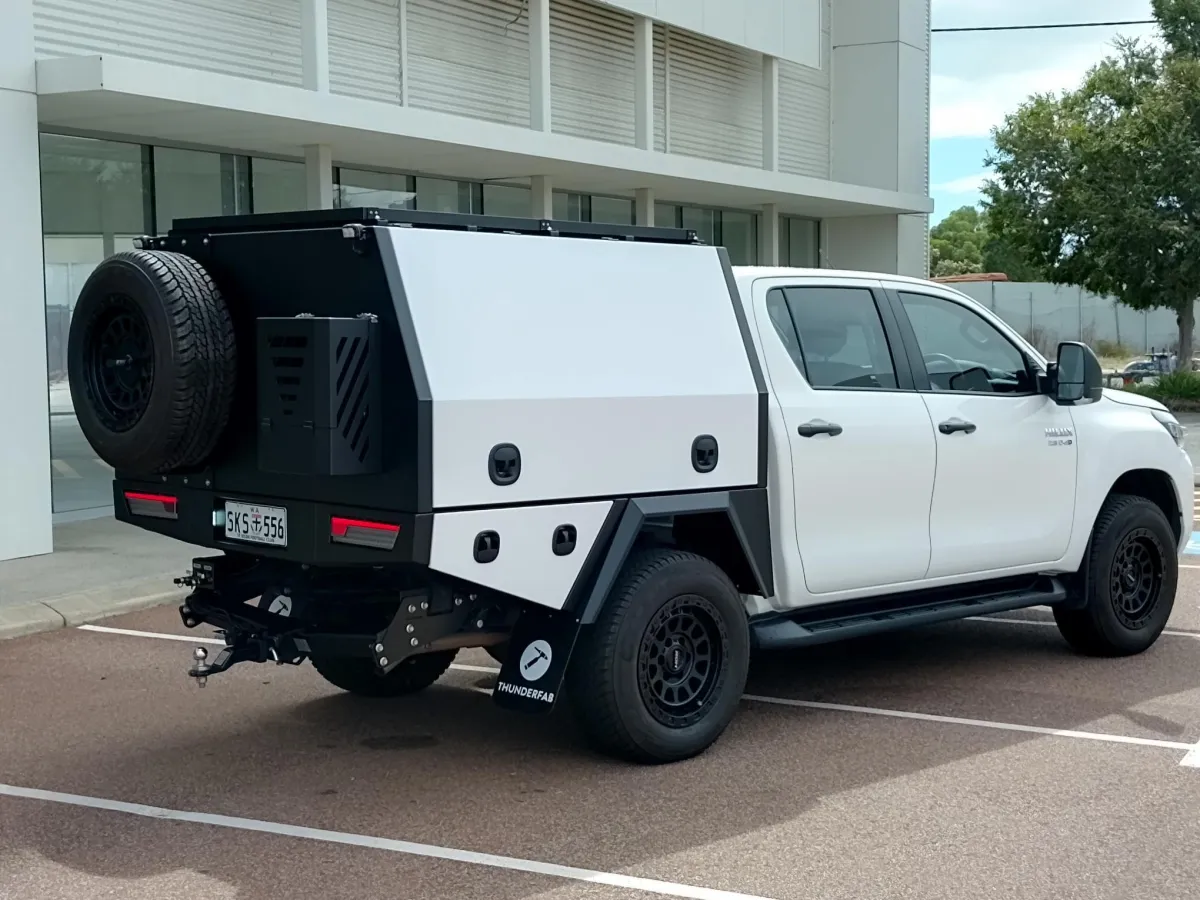

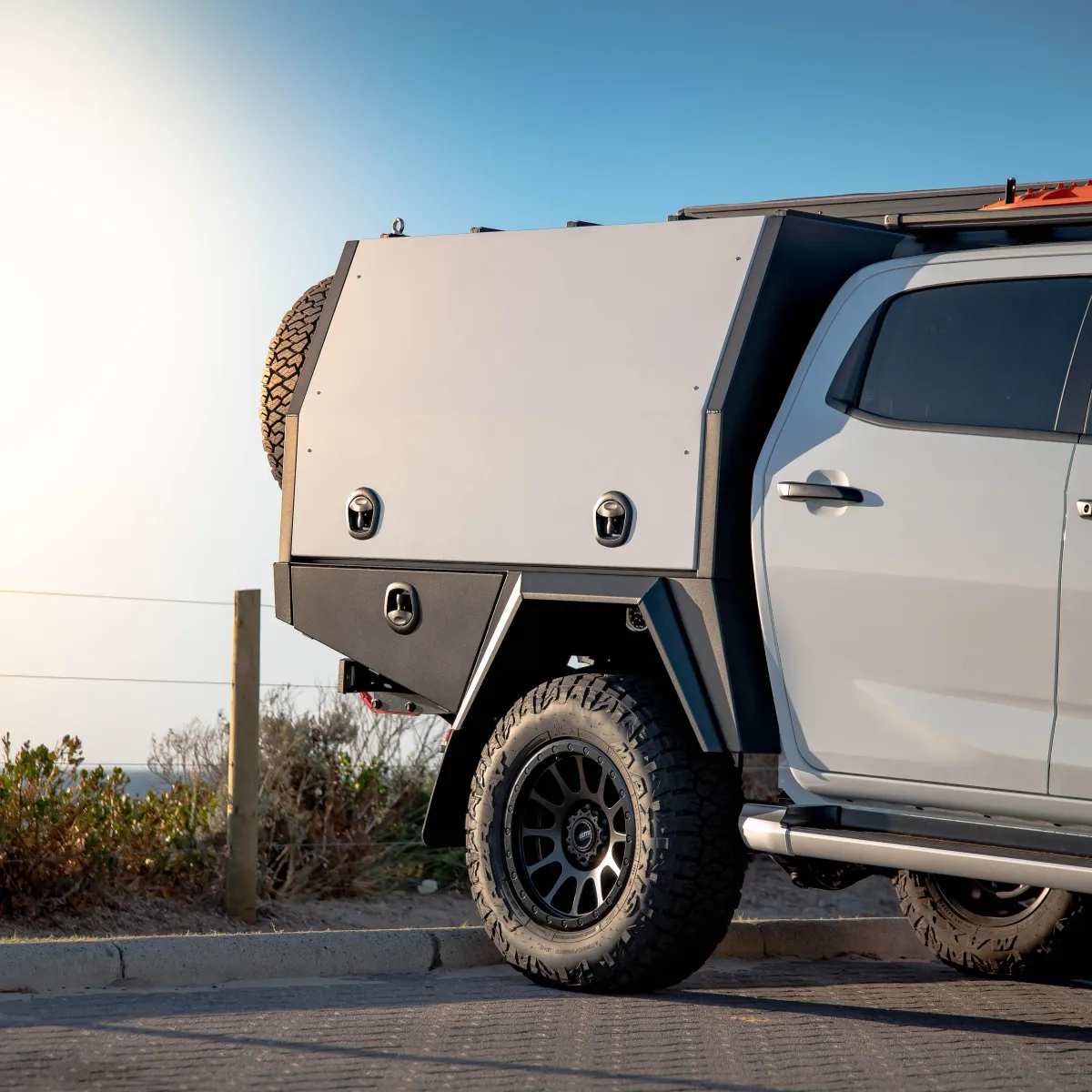

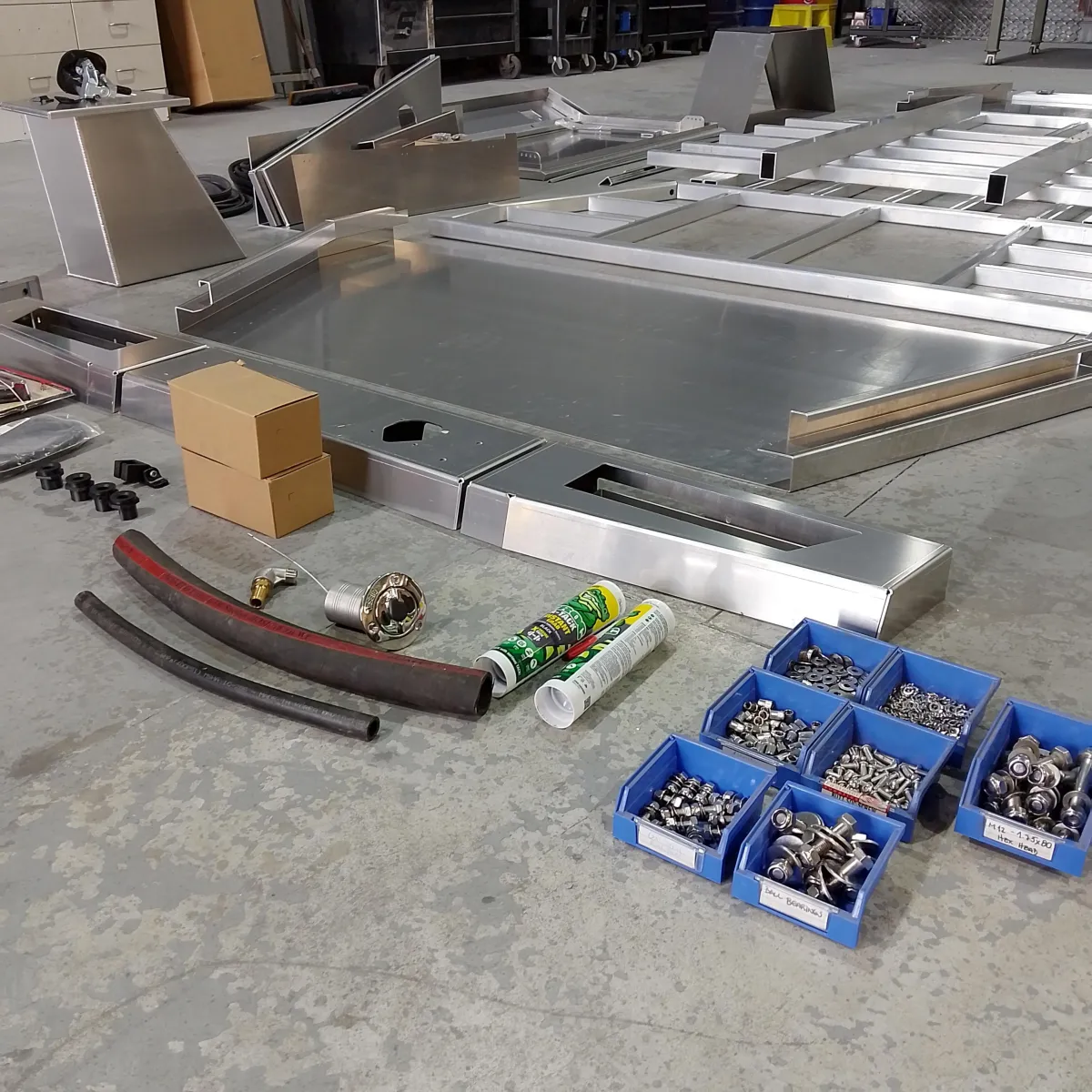

We supply every component you will need to fabricate and install a chassis mount aluminium canopy to your chosen vehicle, with underbody toolboxes, mudguards, filler panels.

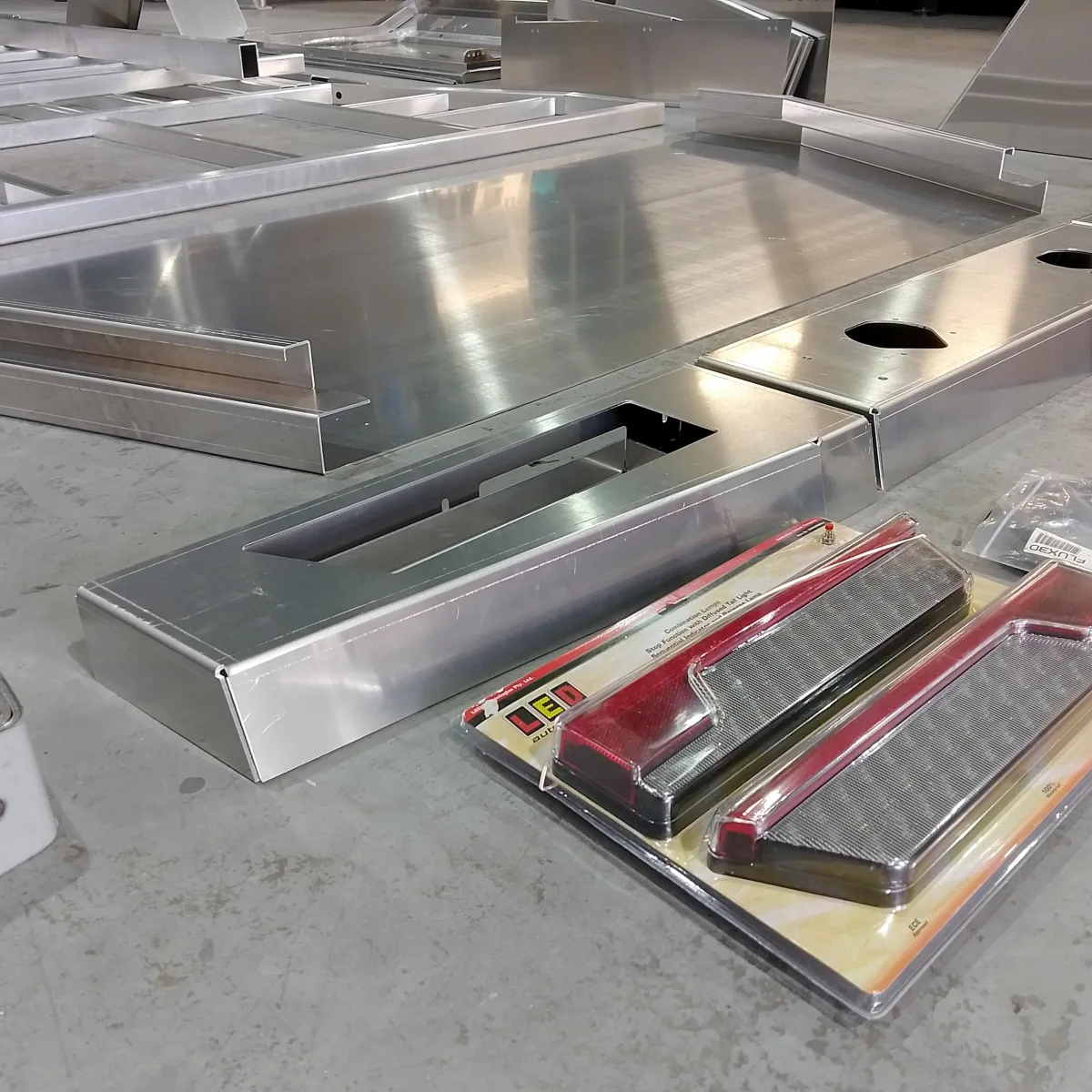

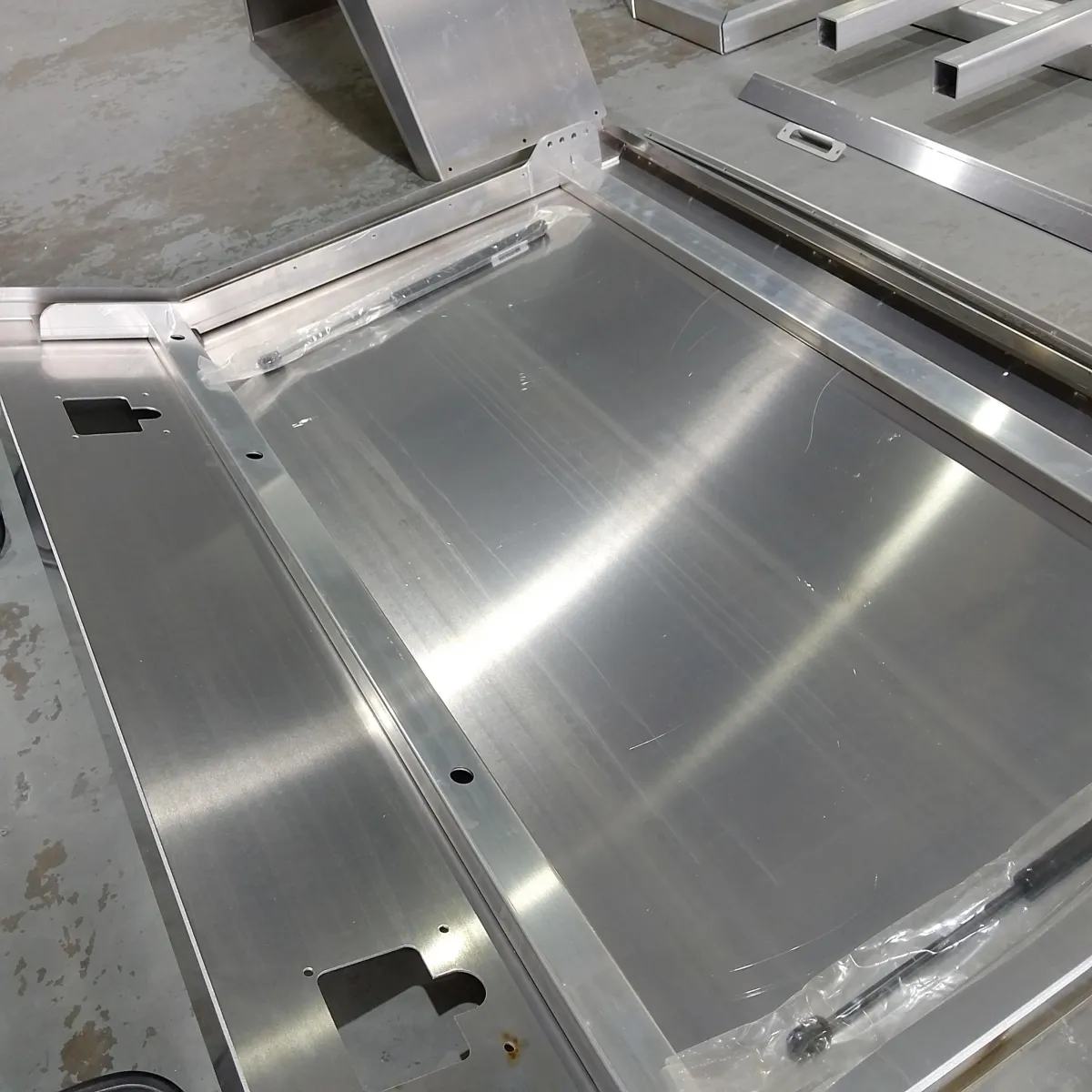

- Laser-cut and CNC-pressed aluminium panels for accurate fitment, including doors, toolboxes, guards, 1-piece roof, wall sheets, flush floor sheets, LED taillights, Stainless Fuel Filler materials.

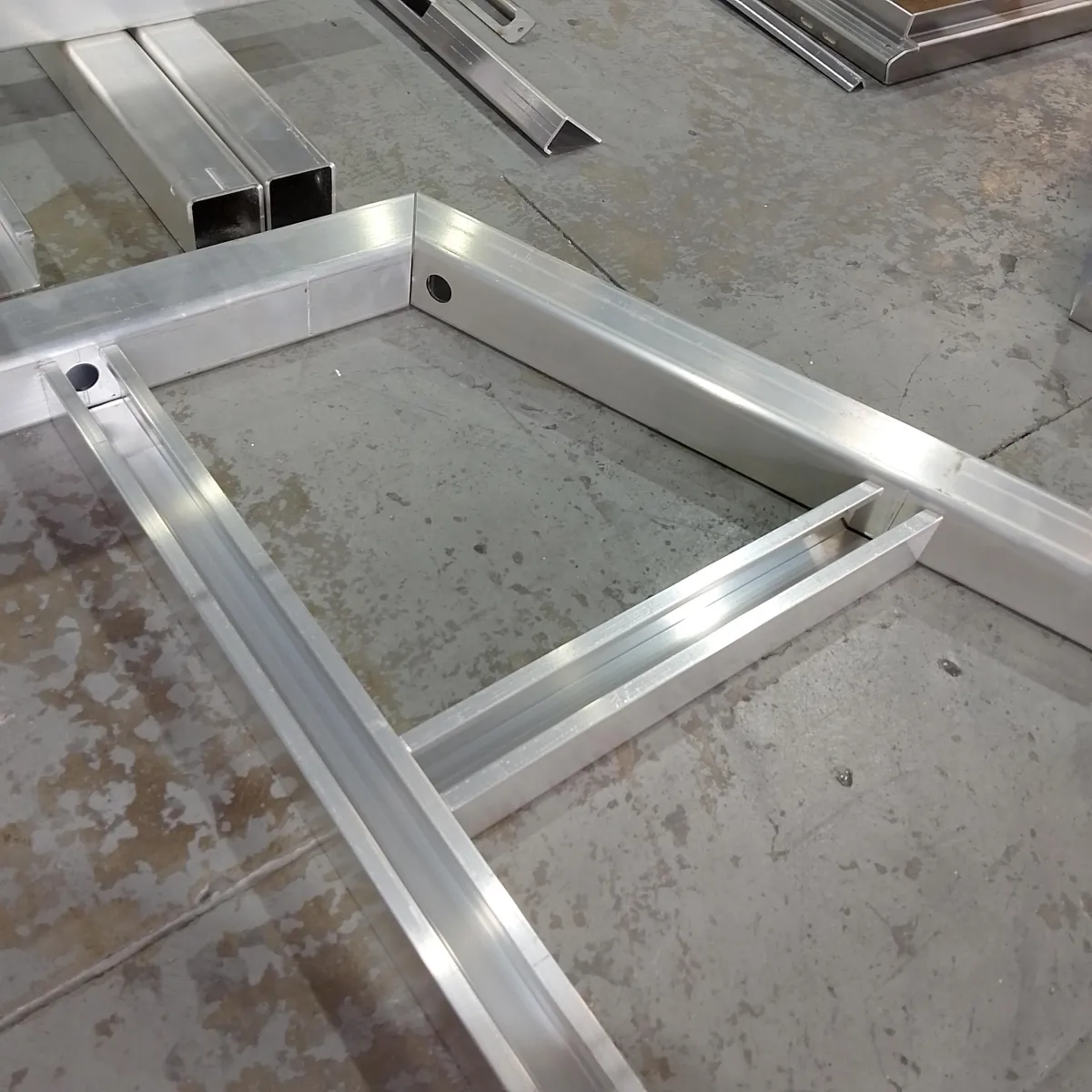

- Laser-cut aluminium tube frame with etched alignment marks for easy assembly

- JIG board to ensure correct headboard angles and size when welding the frame together

- Premium High security Selectlok whale tail locks with Euro Barrels

- Selectlok Heavy-duty hinges, high-quality automotive seals and gas struts

- 304SS Vehicle-specific mounts for fitting the canopy to the vehicle chassis

- Vehicle-specific sensor and camera relocation kits (If applicable to your vehicle)

- All bolts, washers, fasteners and adhesive

- Detailed assembly instructions and drawings

We use 2.5mm 5005 Australian aluminium sheet for the roof, walls and doors, we have found this to be the perfect balance between weight and strength, our canopy design uses a fully welded frame which provides the strength not the outer skin like some of our competitors designs.

2.5mm is 16.7% lighter than 3mm sheet which can make a huge difference on a fully loaded vehicle setup for towing and touring helping you keep your GVM in check and staying legal.

Yes, we have incorporated 41mm aluminium Unistrut to the frame of the canopy on the walls and ceiling, this keeps weight down while retaining strength and give flexibility to add accessories without drilling.

We have heavily invested in the design and simulation testing of our canopies to ensure we have a solid design that we can offer giving the end user confidence. Our canopies are designed with CAD using SolidWorks. Simulation testing was performed using Finite Element Analysis (FEA).

We also have a wealth of real-world testing performed on our own vehicles on some of Australia's toughest tracks. Cam Wild from "Wild Touring" also put one of our canopies through its paces in the 2 years he had with our canopy on his Dmax as can be seen on his Youtube channel.

Yes absolutely.

You can add externally mounted accessories like jerry can holders, spare wheel holders, water tank kits, rear folding ladder etc.

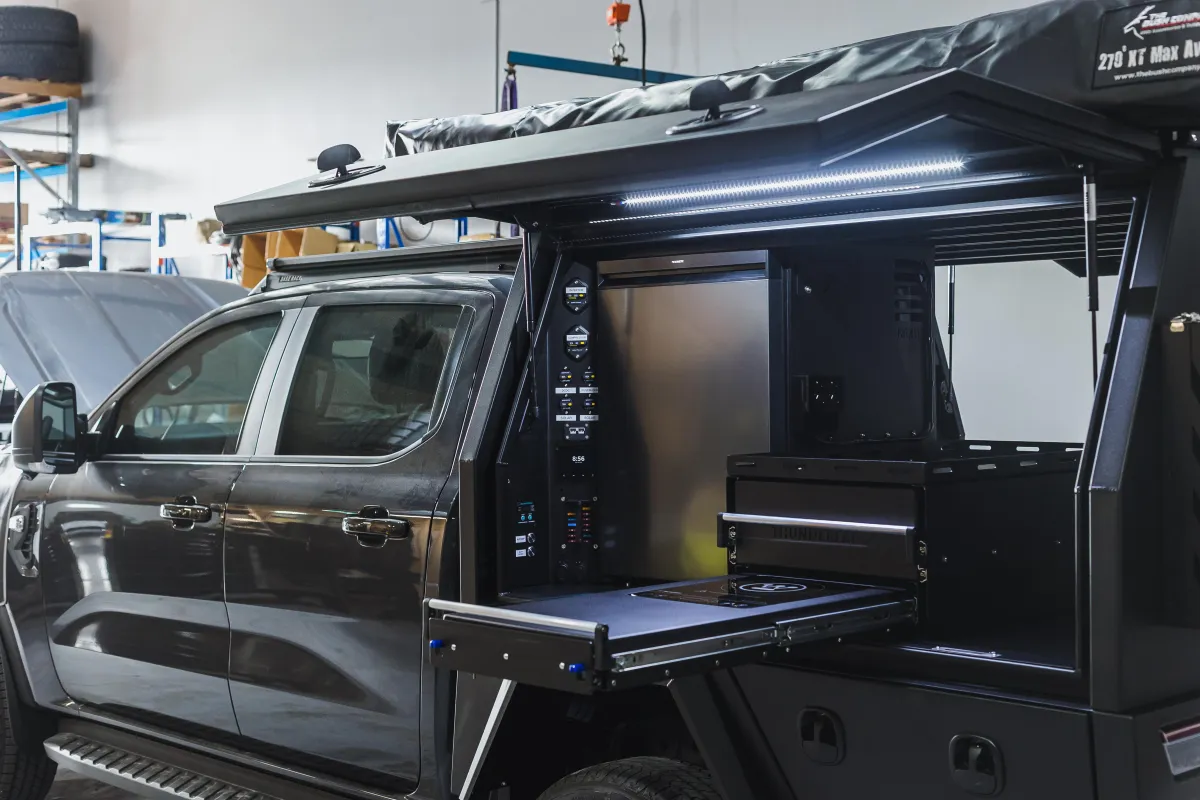

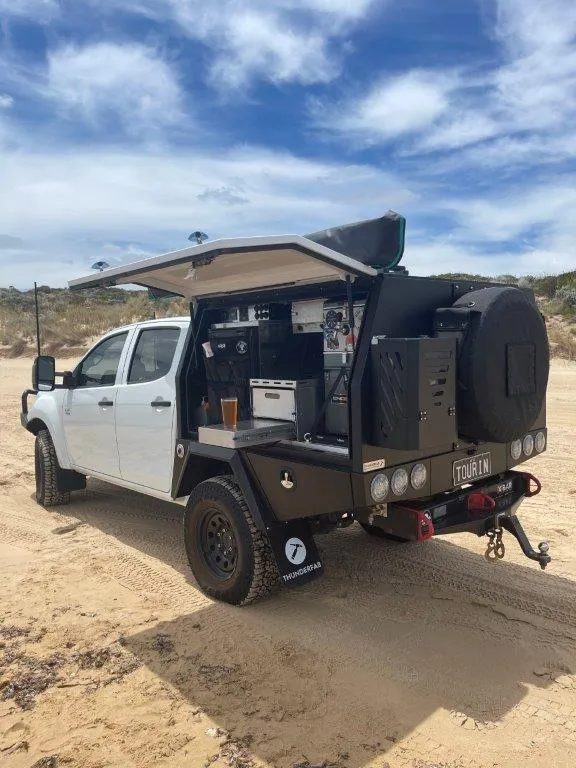

We also have a vast range of internal accessories such as full depth & half depth shelves, storage options such as drawers & pantries, fridge enclosures for most fridge makes & models, electrical display & mounting panels.

Yes. Each kit supplied has a detailed set of step-by-step instructions with images. You also get an assembly drawings pack included with PDF copies. As we are Perth locals, we are only an email or phone call away if you need any additional support.

If you have no previous welding experience, no need to worry. There are a couple of options for you.

1. You can contact one of our preferred fabricators / installers who will gladly build and install one for you.

2. If you have a trusted local fabricator who is willing to help out, you can still purchase one of our kits and get them to build it for you.

3. You can come direct to us as we offer a "done for you" service.

We have spent 5+ years developing and improving these kits to get them to a stage where even with limited aluminium fabrication experience, if you have an AC TIG, MIG setup for aluminium work and a flat bench can produce a high-quality canopy that will perform and outlast the life of the vehicle.

Yes, we will package the canopy kit on a 3m x 1.5m pallet and can send anywhere in Australia - Freight charges will apply.

Our standard lead-time to have your kit cut, pressed, compiled and packaged is 2 weeks from the time of a deposit received.

1. You contact us via clicking on the below link, filling out the survey and booking a slot for a short phone call. Here we will discuss things like the vehicle details [e.g. 2024 Ford Ranger Wildtrack], your specific needs and how we think our kits can help you.

2. We then prepare the kit specifically for the vehicle you have requested.

3. Once we have the completed kitset compiled, QA checked, packaged and ready for dispatch/collection we will notify you.

4. You are now ready to start welding your canopy together, you have a detailed step by step instructional to follow and can also ask us if you have any questions along the way.
